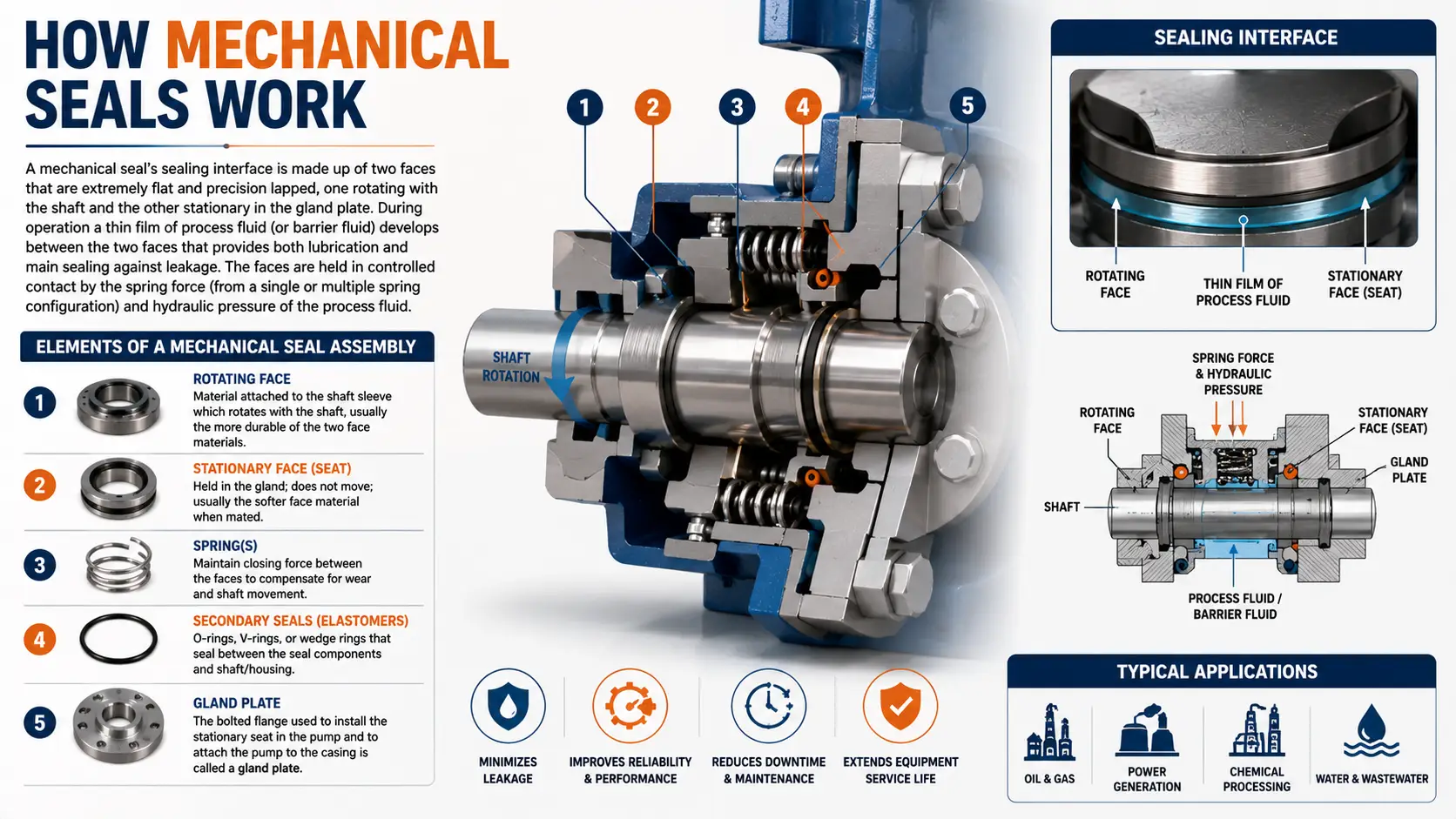

Mechanical Seals Nigeria : Industrial Applications, Types, Materials & Procurement Guide In Nigeria's oil fields in the Niger Delta, the mechanical seal is at the heart of pump reliability in refineries located at Port Harcourt and Warri, in water treatment plants, chemical processing plants, and manufacturing plants in Lagos and Kano. Mechanical seals in Nigeria are what the engineers and maintenance personnel in Nigeria rely on to keep the fluid under pressure inside the casing from escaping around the rotating shaft each time the centrifugal pump, the mixer or the compressor shaft rotates. The wrong seal for the application or a substandard replacement seal will directly cause leaks, equipment downtime, environmental problems and expensive emergency maintenance. This complete guide addresses the types, materials, standards, applications and procurement factors of industrial mechanical seals in Nigeria that reliability engineers and procurement teams in Nigeria need. Definition: This is a precision device fitted into rotating equipment to prevent liquids and/or gases from passing between rotating surfaces and to allow the rotating shaft to move freely. It forms a dynamic seal between the rotating face (which is attached to the shaft) and a stationary face (which is retained in the gland), with contact between the faces being maintained by the springs and the hydraulic pressure. Looking for certified mechanical seals in Nigeria? We can provide you a very quick seal quote for any pump model, shaft diameter, operating pressure, and fluid type! → Request a Quote How Mechanical Seals Work A mechanical seal's sealing interface is made up of two faces that are extremely flat and precision lapped, one rotating with the shaft and the other stationary in the gland plate. During operation a thin film of process fluid (or barrier fluid) develops between the two faces that provides both lubrication and main sealing against leakage. The faces are held in controlled contact by the spring force (from a single or multiple spring configuration) and hydraulic pressure of the process fluid. The elements of a mechanical seal assembly are: Rotating face — material attached to the shaft sleeve which rotates with the shaft, usually the more durable of the two face materials. Stationary face (seat) — held in the gland; does not move; usually the softer face material when mated Spring(s) — maintain closing force between the faces to compensate for wear and shaft movement Secondary seals (elastomers) — O-rings, V-rings, or wedge rings that seal between the seal components and shaft/housing Gland plate —The bolted flange used to install the stationary seat in the pump and to attach the pump to the casing is called a gland plate. Types of Mechanical Seals The first step in any pump mechanical seals Nigeria procurement enquiry is to choose the right seals for the application. The table below outlines the main types of seals found in the industrial industry in Nigeria. Seal Type Configuration Pressure Range Typical Nigeria Application Single Component Seal One seal face pair, basic design Up to ~20 bar General water, low-hazard process fluids Double Mechanical Seal Two seal face pairs, barrier fluid system Up to 40 bar+ Hazardous, toxic, or fugitive emission-sensitive fluids Cartridge Seal Pre-assembled unit, no field measurement Wide range Critical equipment; reduces installation error Split Seal Halved for installation without shaft removal Low to medium Large vertical pumps, agitators, fans Balanced Seal Reduced face hydraulic load High pressure service High-pressure refinery and process pumps Unbalanced Seal Full hydraulic load on seal faces Low to medium Light duty, water, non-hazardous fluids Gas-lubricated (dry gas) Non-contacting faces with gas barrier High pressure Gas compressors, high-speed turbomachinery Single Mechanical Seals Most process, water supply and non-hazardous fluid pumping use single seals (rotating and stationary faces) across Nigeria. They can be used when the amount of leakage through the seal faces is tolerated and when the process fluid is not toxic, carcinogenic, or flammable. Double Mechanical Seals Double seals have two seal faces and in between them is a pressurized or unpressurised barrier/buffer fluid. They are required for fluids that are toxic, carcinogenic, volatile, or hazardous to the environment where it is impractical or impossible to prevent any leakage to the atmosphere. Double seals are specified for produced water, hydrocarbon vapour service and chemical injection service in all the oil and gas facilities across Nigeria, in Bonny Island, Onne and the Niger Delta. Cartridge Mechanical Seals Cartridge mechanical seals are pre-assembled seals that have all components – seal faces, springs, gland plate, and shaft sleeve – assembled in the factory and mounted on the shaft and bolted to the pump without any field measurement or component setting. In Nigeria, where maintenance teams often have t…
