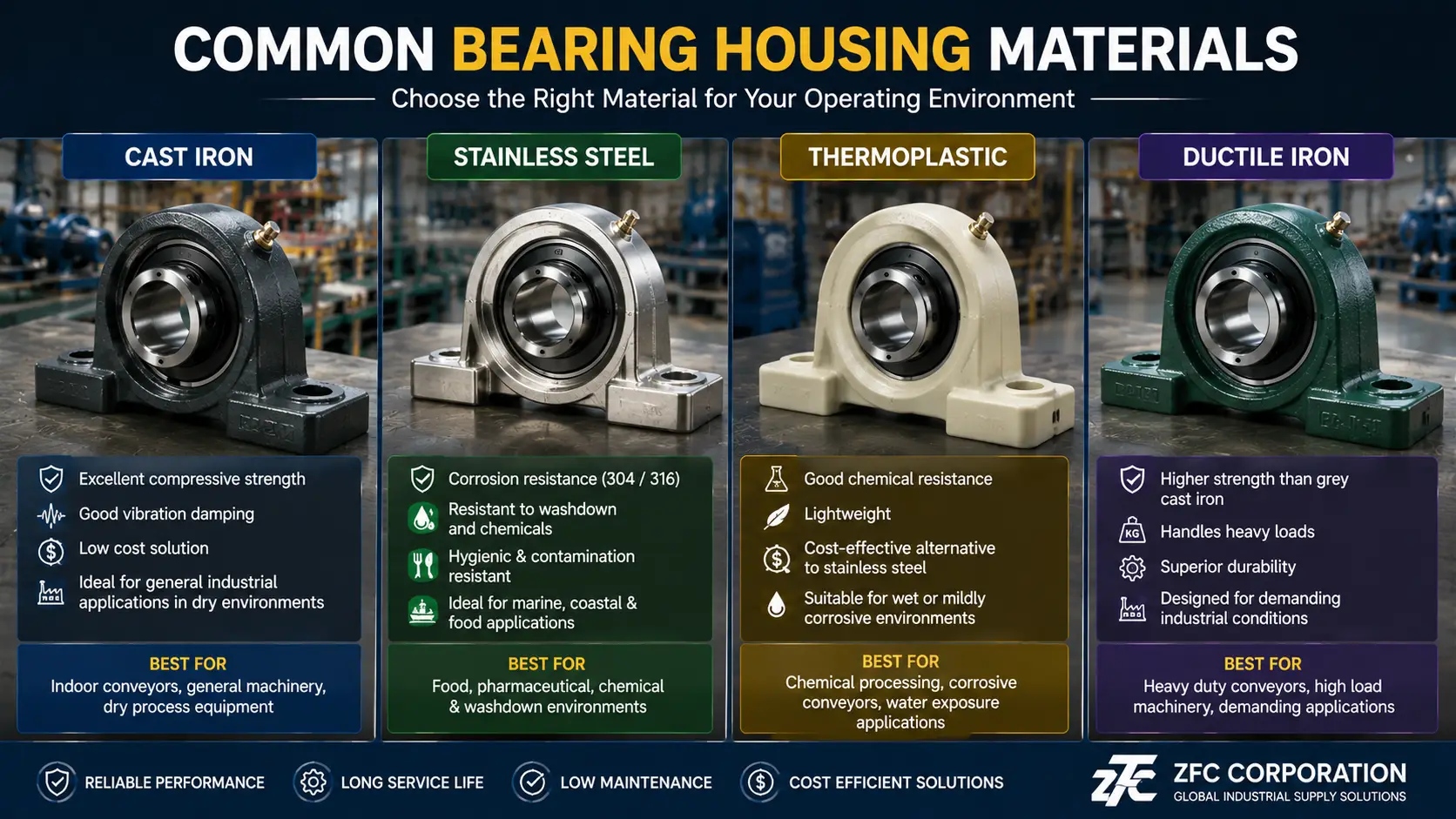

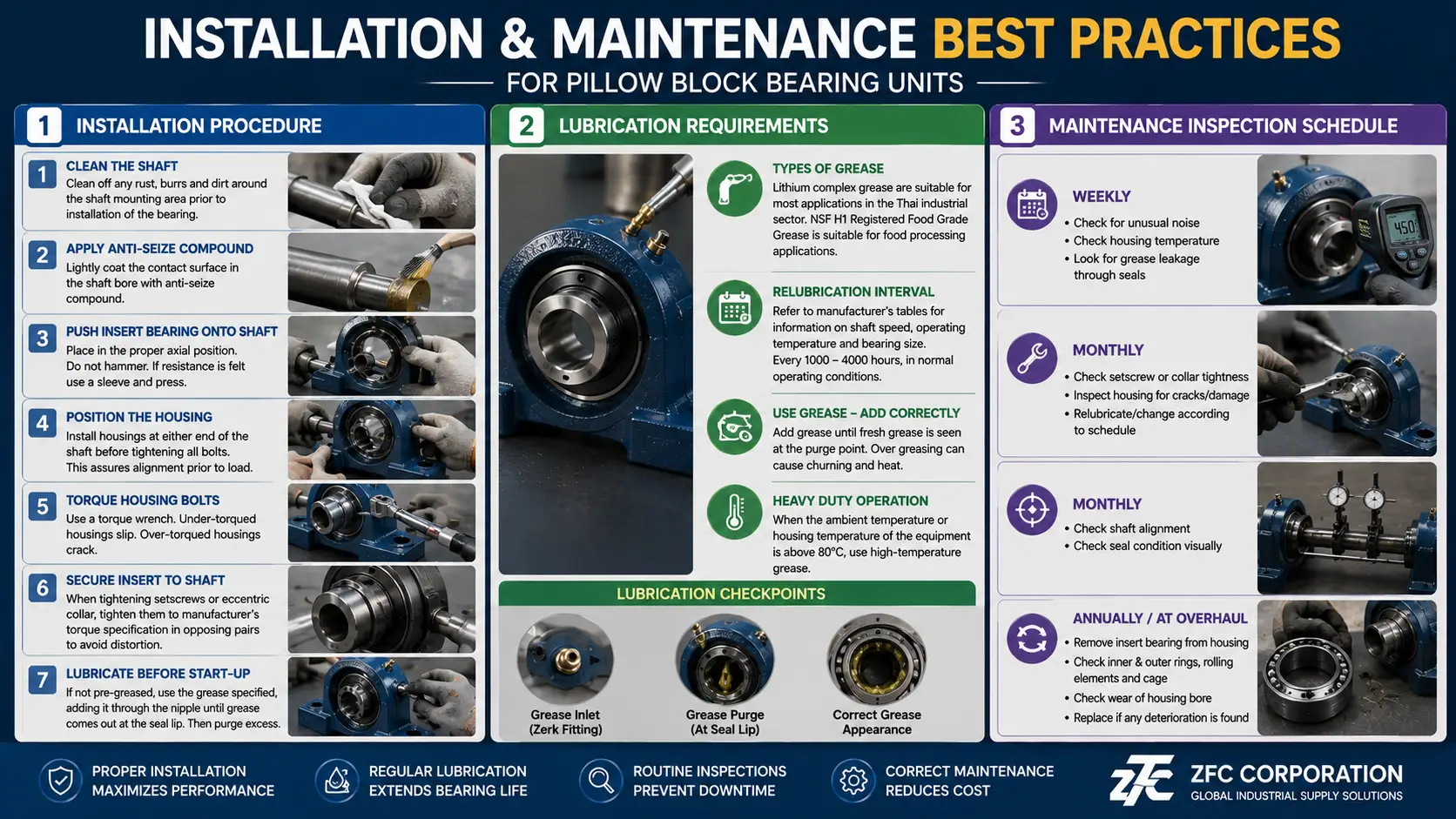

Pillow Block Bearings Thailand – Complete Selection & Procurement Guide Thailand's manufacturing sector is vast. From the automotive assembly lines in Chonburi and Rayong to the food processing plants in Ayutthaya and the packaging operations in Samut Prakan, rotating equipment is everywhere. And rotating equipment runs on bearings. One of the most popular bearing units throughout Thai industry is the pillow block bearing. They are routinely used by maintenance managers, plant engineers and procurement teams. Very simple to install. The insert bearings are replaceable. Housing materials adapt to various environments. These attributes make pillow block bearings the preferred bearing type for conveyor shaft drives, fan drives, agricultural machinery, and rotating equipment in general in the Eastern Economic Corridor and beyond. This guide provides all the information you need to help you choose, source, install and maintain the appropriate pillow block bearing for your Thailand application. Already know which pillow block bearing you need? Skip straight to sourcing — submit your shaft size, load, and application for a fast, accurate quotation. → Request a Quote What Are Pillow Block Bearings? A pillow block bearing is a mounted bearing assembly. It contains a bearing insert inside a housing unit designed to support rotating shafts. The housing bolts directly to a flat mounting surface. This makes installation simple compared to loose bearing arrangements that require custom housings. Key components: The standard pillow block has two main parts. The housing block is the support structure — usually grey iron, stainless steel, or thermoplastic — with two bolt holes in the base. The insert bearing is a rolling element bearing with a spherical outer ring that seats into the housing bore, providing a degree of self-alignment. A locking mechanism — setscrew, eccentric locking collar, or concentric adapter sleeve — grips the shaft and prevents axial movement. For a comprehensive technical overview of bearing types — covering deep groove ball, angular contact, spherical roller, and tapered roller bearings that power the inserts used in pillow block assemblies — see our Bearings Article covering the full range of industrial bearing technologies and their performance characteristics. How Pillow Block Bearings Work A rotating shaft passes through the bore of the insert bearing. The rolling elements — balls or rollers — sit between the inner and outer rings. They reduce friction to a fraction of what sliding contact would produce. The outer ring's spherical surface seats in the matching concave bore of the housing. This allows the insert to tilt slightly relative to the housing. That tilt accommodates minor shaft-to-housing misalignment without creating edge-loading stresses that would destroy a non-aligning bearing. The primary functions of a pillow block bearing assembly are: Carrying the weight of the shaft, belt tension, and process loads (radial load support) Positioning the shaft along its axis through the locking mechanism (axial location) Compensating for shaft deflection or housing misalignment (misalignment accommodation) Minimizing energy loss and heat generation (friction reduction) Allowing the bearing element to be changed without disturbing the shaft or replacing the housing (simplified maintenance) Types of Pillow Block Bearing Units Standard Two-Bolt Pillow Block (UCP Series) This is the most common configuration across Thai industry. The two-bolt pillow block — designated in the ISO/JIS UCP series — provides a compact, low-profile mounting. It suits the majority of conveyor, fan, and general machinery applications. Shafts vary in size from 12 mm to 100 mm and larger. High degree of interchangeability between brands, making procurement and replacement stock management simple. Four-Bolt Flange Units (UCF / UCFC Series) Flange-type units mount on a vertical or horizontal surface using four bolts. They allow shaft support where a flat base mounting surface is unavailable. Square flanges (UCF) and round flanges (UCFC) are commonly specified on fan drives, pump installations, and equipment where the bearing must mount to a wall or plate rather than a base frame. Take-Up Units (UCT Series) Take-up bearing units incorporate a sliding or screw-adjustable frame. The bearing position can be moved along a channel or frame slot. These are widely used on conveyor drive shafts where belt tension must be adjusted periodically. This is a common maintenance requirement on conveyor pillow block bearings Thailand processing facilities manage.] Pillow Block vs Plummer Block: Key Differences Factor Pillow Block Bearing Plummer Block Bearing Mounting Two bolts through base, flat surface Two or four bolts, designed for heavier structural frames Shaft range 12 mm to ~100 mm 50 mm to very large diameters Bearing type inside Insert bearing (Y-bearing) Standard deep groove, cylindrical or spherical roller Load capacity Light to me…
